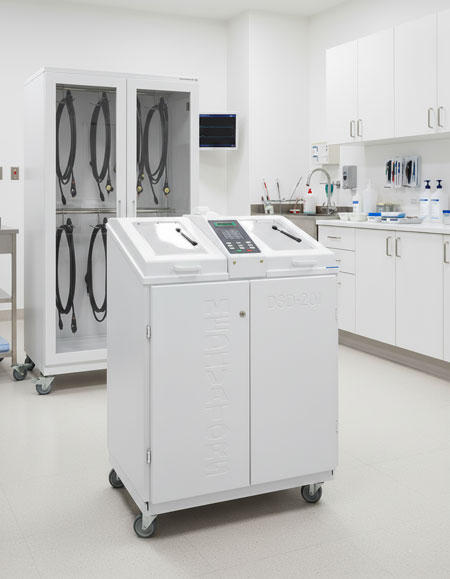

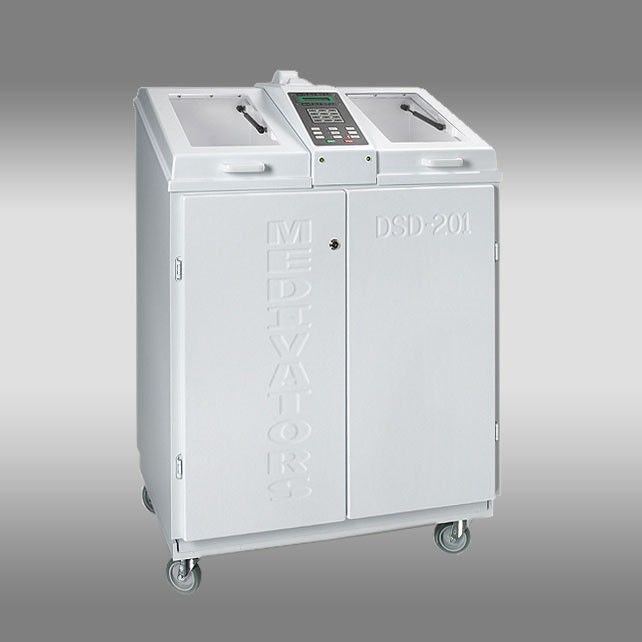

DSD-201 Preventative Maintenance & Service
Professional Care for Medivators® DSD-201 Endoscope Reprocessors
A Medivators® DSD-201 is built to work hard—day after day, just like the DSD EDGE. But even the best equipment needs attention now and then and Annual Preventative Maintenance is a must! Skip a maintenance step, and suddenly your endoscope reprocessor might start showing error alarms, shut down mid-use, or worse, cause you to cancel procedures and delay your schedule.
That's where MedService Repair comes in. We provide every aspect of service and preventative maintenance for the Medivators® DSD-201 , following the same guidelines used by the manufacturer but without the long wait times or inflated service costs. The goal is simple: keep your system reliable, calibrated, and ready to go when needed while keeping patient safety in mind.
Why Preventative Maintenance Matters
A Medivators® DSD-201 isn't something you just plug in and forget. It's an automated workhorse that features a three-stage filtration system and high-level disinfectant for bacteria-free cleaning of delicate endoscopes. The automated process includes washing, disinfection, rinsing, alcohol flushing, and air drying of endoscopes. All with precise chemical mixing and strict temperature control. But if anything is out of spec, the whole process is at risk. Error alerts, fluid leaks, and constanty running compressors are just some of the warning signs that your AER needs your immediate attention.
Routine maintenance on your Medivators® DSD-201 endoscope reprocessor typically catches issues before they snowball. AER filters clog, valves wear, sensors drift—it's normal wear and tear. Regular checks keep everything balanced so the endoscope reprocessor runs smoothly and disinfection standards stay where they should be.
It's really no different from doing oil changes on a car. Skip one, and you might not notice a problem right away. But eventually, the cost of neglect may disrupt your schedule—and your maintenance budget. That's why many facilities treat preventative maintenance as part of their infection-control program. It saves time, parts, and money in the long run, while keeping procedures on track.
Service vs. Maintenance: What's the Difference?
Customers sometimes are unaware that these two terms means very different things — at least when you're talking about keeping a Medivators® DSD-201 in good working order.
Preventative Maintenance is the routine stuff: inspections, filter swaps, calibrations, and clean-ups that keep the unit running smoothly. It's the "stay ahead of it" work that prevents bigger problems from showing up later.
Service, on the other hand, is what happens after something goes wrong. Maybe your reservoir heater trips an error, a pump stops priming, or a disinfectant fluid or detergent leak appears near a connection. That's when a technician breaks out the tools, diagnostics, and replacement parts to get it back online.
At MedService Repair , we provide both. Some visits are preventive—planned weeks ahead. Others are true service calls, where speed matters more than scheduling. Either way, the goal doesn't change: get your Medivators® DSD-201 operating properly and keep it that way.
Preventative Maintenance is the routine stuff: inspections, filter swaps, calibrations, and clean-ups that keep the unit running smoothly. It's the "stay ahead of it" work that prevents bigger problems from showing up later.
Service, on the other hand, is what happens after something goes wrong. Maybe your reservoir heater trips an error, a pump stops priming, or a disinfectant fluid or detergent leak appears near a connection. That's when a technician breaks out the tools, diagnostics, and replacement parts to get it back online.
At MedService Repair , we provide both. Some visits are preventive—planned weeks ahead. Others are true service calls, where speed matters more than scheduling. Either way, the goal doesn't change: get your Medivators® DSD-201 operating properly and keep it that way.
DSD-201 Preventative Maintenance Schedule
You can't run AERs nonstop and expect them to stay perfectly tuned. The Medivators® DSD-201 is no exception; it too will need an endoscope reprocessor service. Like any precision system, it depends on preventative maintenance to keep things in check.
Here's a typical preventative maintenance schedule outline:
| Interval | Recommended Tasks | Quick Notes |
| Daily / Before Use | Give the basins, tubing and hoses a quick visual once-over. Check that water filters look clean and the disinfectant test strip reads within range. | A 10-second look over before the first cycle can save you a 2-hour call later. |
| Weekly | Flush the hook-ups and confirm good flow through each channel. | Weak flow usually means a kink or early clog. Fixing it early avoids alarm codes mid-procedure. |
| Monthly | Swap the external pre-filters. | If your water supply runs heavy with sediment, do this even sooner. |
| Every 6 Months | Replace the 0.2-micron internal AER filter. Inspect wiring, valves, and the heater assembly. | This is a key infection-control step — don't skip it. |
| At Each Disinfectant Change | Install a new disinfectant filter cartridge and check fittings. | Always align the flow arrows correctly; it matters more than you'd think. |
| Annually | Run a full calibration: temperature sensors, thermistors, leak tests, and pump validation. Replace worn seals and document it all. | The paperwork helps when auditors come calling. |
With regard to the DSD-201 preventive maintenance schedule, we stick closely to the manufacturer's guidelines but add a few extra checks based on our own field experience — small things that prevent bigger issues and headaches later. We can help you implement a good preventative maintenance plan that will increase the life of your reprocessor and decrease interrupted downtime.
Compatibility & Supported Models
Our technicians perform endoscope reprocessor maintenance and service repairs on every model manufactured by Medivators® and related AER systems used in hospitals and outpatient centers. Whether your endoscope reprocessor has updated control components or the original configuration, we provide full PM and repair on site. Medivators® units remain common across facility types, and our team maintains the necessary filters and replacement kits so turnaround is quick. Each facility gets detailed summary documentation confirming the service performed and next PM service date.

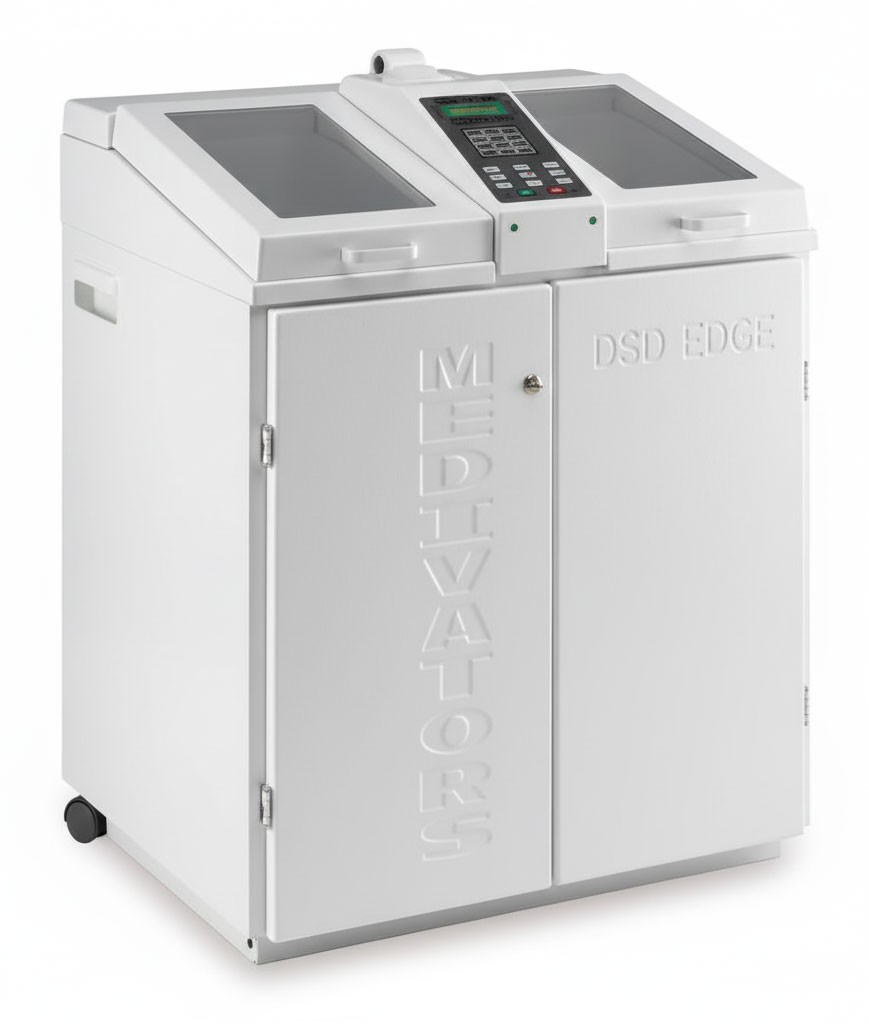

Medivators® DSD-201 and DSD Edge
The MedService Repair Preventative Maintenance Process
When we come out for a DSD-201 preventative maintenance visit, it's never just about swapping parts or doing minimum maintenance. Instead, we take the time to do a comprehensive inspection—how it's running, detailed readings, and even how it sounds when it cycles. Then we clean, calibrate, test, and log the results so your records are up-to-date. It's a bit of a process, sure, but that's how you keep these units dependable. Here's roughly how a visit goes:
1. Pre-Visit Coordination
Before anyone arrives on-site, we review your unit's service history, cycle counts, and logs. Replacement kits and AER filters are shipped in advance or brought with our technician so there's no waiting around for parts.
2. Safety & Setup
Once on-site, we isolate the utilities, confirm proper grounding, and suit up with PPE. Then baseline readings are taken—water pressure, voltage, ambient temperature—before touching a single valve. Those numbers tell a lot about how the system's been living day to day.
3. System Cleaning & Filter Replacement
Both the internal and external filters are replaced. Lines get flushed, the basins cleaned, and the unit's interior inspected for buildup or signs of corrosion. It's the unglamorous part of preventative maintenance, but it's where most hidden issues are caught.
4. Electrical & Mechanical Checks
We test pumps, solenoids, heaters, and valves individually using the diagnostic mode. Loose connectors, weak wiring, or slow-responding valves are corrected right there. Anything that looks questionable gets logged and reviewed with you before we leave.
5. Calibration & Validation
Monitoring and troubleshooting components like temperature sensors, pressure switches, and disinfectant delivery systems is typical. We calibrate parts and components to manufacturer tolerances and run a full test cycle to validate your equipment is running properly.
6. Documentation & Review
Every detail is logged: replaced parts, calibration results, flow data, recommendations. We provide you with a full PM Field Service Report and review any operational notes, questions, or instructions with your staff before closing the visit at your location. Once our technician is wrapped up, your DSD-201 should run cleanly, documentation in order, and you know exactly when the next preventative maintenance service should be scheduled. Simple, predictable, and ready to go.
7. Diagnostic Indicators
Front-panel LEDs and the on-screen log are useful for DSD-201 troubleshooting. If an LED stays lit after a cycle, note which indicator code was shown; this helps our technicians with troubleshooting and may even shorten the repair time.
Common Medivators® DSD-201 Service Issues
Even a well-kept DSD-201 can throw a curveball now and then. Some problems show up slowly—odd noises, weak flow, a stubborn alert that pops up once in a while—and others hit without warning. Here are a few of the usual suspects our techs run into and some suggestions.
1. Fluid Flow Problems or Slow Rinse
Nine times out of ten it's a clogged pre-filter, a hose or tubing that's kinked behind the unit. Sometimes an internal filter is packed solid and the pump's fighting for pressure. We isolate the line, clear or replace what's causing the restriction, and run a short test cycle to make sure flow comes back strong.
2. Disinfectant Alarms
When you are having problems with disinfectant potency, troubleshooting is usually pretty simple—a disinfectant solution that's aged out, a strip that's expired, or residual water sneaking into the reservoir. We drain it, flush the lines and tubing, and load fresh solution. If the readings still wander after that, we have second level solutions to fix your issue. Sometimes it takes a second pass before it settles.
3. Heater or Temperature Issues
These tend to start small: a slight delay in warm-up or inconsistent readings between basins. That's a hint one of the thermistors is loosening up or the heater element's getting tired. We check connections first, replace parts if needed, and verify both basins heat evenly afterward.
4. Leaks Around the Lid or Drain
If you spot a drip near the lid or drain, odds are it's an O-ring flattening out, a fitting starting to split, or tubing starting to crack and leak. Leave it long enough and you'll see major issues develop. During PM we go over every seal—if one even looks suspicious, it gets changed right then and there.
5. Power or Control Issues
If the display doesn't light up or the unit resets mid-cycle, it could be a blown fuse, bad ground, or the control board itself. Our diagnostics catch these fast so we can repair or replace before it affects daily use.
Each DSD-201 PM service at your location ends the same way—a full operational cycle. We monitor and confirm pressures, temperatures, and flow paths all line up with spec before packing up. If something still feels off, we stay until it doesn't. That's just how we work.
How Often Should a DSD-201 or DSD Edge Have PM Service?
Enter your text here ...
The OEM recommends annually, and many customers prefer every six months for Preventative Maintenance. That's a good baseline if your endoscope reprocessor runs a moderate schedule.
If your facility is busy—several scopes an hour, every day—you'll want to bump that up. Semi-Annual PM service keeps the reprocessor in the best condition possible. Once a component starts wearing out, it drags everything else with it, and that's when downtime creeps in.
Some hospitals treat PM as a fixed date on the calendar. Others go by cycle count, which works fine as long as someone's tracking it. Either way, the point is consistency. Waiting until an alarm goes off usually means you're already behind.
At MedService Repair, we tailor the schedule around our customers' usage patterns, water quality, and demonstrated needs. After a few visits, we'll know how your DSD-201 behaves and can recommend what makes the most sense.
And for facilities tied to Joint Commission, ISO 13485, or similar compliance programs, we provide full documentation—dates, serial numbers, calibration results—all neatly logged for inspection. There's no sense in having to stress or scramble when auditors walk in.
The MedService Repair Difference
If you've worked around automatic endoscope reprocessors for a while, you already know the brand names. Medivators® / Cantel / Steris / Olympus —they all make solid systems. The real difference isn't the label on the unit; it's who keeps it running. That's where we fit in.
At MedService Repair, our focus is on Field Service. Every tech on our team has hands-on experience with Medivators® AERs— DSD-201, DSD EDGE, and Advantage Plus. We've seen the common failures, the oddball ones, and provide solutions for all.
We also keep a large inventory of replacement parts, both OEM and high-quality compatible versions. That means we can repair most issues on the first visit instead of waiting on backorders. This is especially valuable to high volume clients like hospitals as downtime is unacceptable.
Our support doesn't stop when we leave your site. If a sensor trips again a week later, or you're not sure whether a filter change reset properly, just call us. You'll reach our customer support staff who are actually familiar with your model—not a call center script.
We take pride in our AER service reputation. Getting a DSD-201 back into rotation fast, with paperwork that passes inspection, is what keeps our customers happy and sticking with us as their endoscope reprocessor preventative maintenance and service solution.
Best Practices for In-House Teams
Between service visits, there's plenty your team can do to keep the DSD-201 online. None of it's complicated, but doing these little things regularly makes a huge difference.
Start with a simple habit— log every cycle. Jot down the date, the scope ID, and note any alerts or odd sounds. Patterns can be recognized quickly when you have accurate records.
Swap the external pre-filters about once a month. If your water runs heavy with minerals or sediment, change them even sooner. It's cheap insurance against flow problems.
Keep an eye on your water pressure too. Thirty-five to forty PSI is the sweet spot; drop too low and rinse performance suffers, climb too high and the valves start to complain.
At the end of each day, run a quick rinse to clear any leftover detergent or disinfectant from the lines. Letting chemicals sit overnight is asking for sticky valves later.
And if the unit starts doing something new—a strange click, an extra few seconds on warm-up—make a note of it. Small quirks often point to bigger things happening soon. Catching them early means we can fix them during the next PM facility visit instead of under the pressure of a service call later.
In short: keep it clean, keep it logged, and don't wait for alarms to tell you something's off.
Why Compliance Matters
Endoscope reprocessors sit under a microscope — literally. Every cycle, every chemical check, every preventative maintenance record can be reviewed during an audit. And if something's missing, questions start and consequences may come into play.
That's why staying on top of DSD-201 preventative maintenance isn't just about keeping the machine running; it's about protecting your staff and your accreditation. Proper logs prove that disinfectant strength was verified, critical components were changed, and calibration stayed within spec. It shows the process was followed, not guessed.
When you use MedService Repair, you don't have to scramble for paperwork later. We leave full reports—dates, serial numbers, test data, even pressure and temperature readings. Infection control teams like that. Auditors like it even more.
The end result? Less stress during inspections and more confidence that your endoscope reprocessor is performing exactly as intended.
DSD-201 Calibration Service & Sensor Checks
During diagnostics we verify the sensor board, confirm the floating lid opens and closes smoothly, and trace the flow of fluids, high-level disinfectant solution, detergent, and alcohol. If anything appears out of range we look into it. We also review the disinfectant reservoir, water supply, and water valve sequence so cycles complete functioning properly.
Schedule Your Next DSD-201 Preventative Maintenance Service
If your DSD-201 is due for a check-up, don't wait for the next alert or error code to decide for you. A short visit to your facility and a simple repair may save hours of downtime and additional machine repair charges later.
MedService Repair technicians travel to facilities nationwide and carry the parts most Medivators® systems need—OEM or high-quality compatible replacements—so repairs can be performed on the first trip. We'll coordinate scheduling around your workload to help keep procedures running.
You can reach us directly through our site or by phone. Request a service visit for your DSD-201. Or call (877) 817-5516 to set up your next Medivators® AER preventative maintenance visit.
We'll handle the pm service, update your records, and make sure your endoscope reprocessor is ready for whatever the next shift brings.
