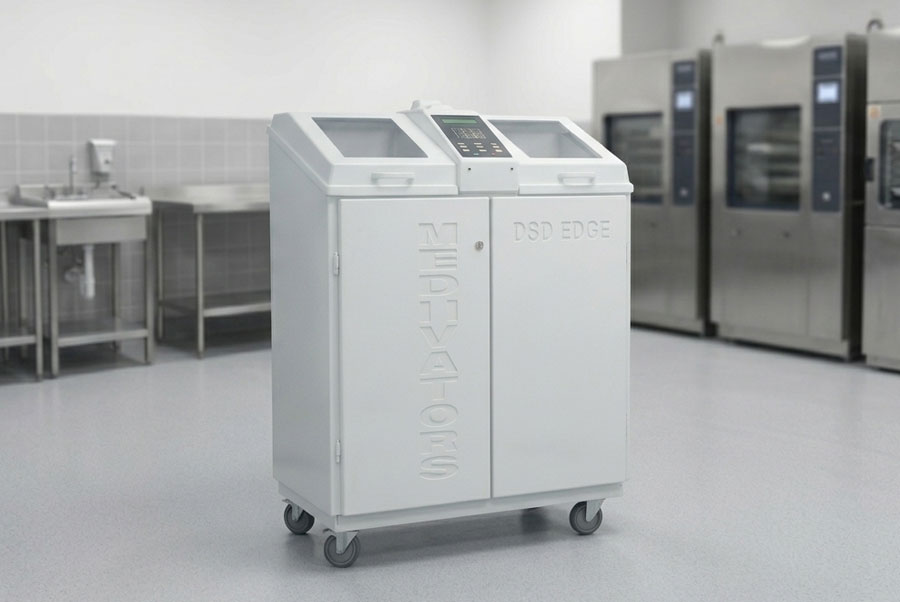

The Medivators DSD Edge is a dual-basin automated endoscope reprocessor that cleans and high-level disinfects two flexible endoscopes at once, running a full cycle in as little as 22 minutes. When it runs, your turnaround keeps up with the OR schedule. When it stops for filter replacement or a cracked O-ring, scopes back up fast. Keeping the right DSD Edge parts on the shelf is the difference between a five-minute swap and a half-day of downtime. Parts are available as genuine OEM from Medivators/Cantel (now STERIS), and lower-cost compatible equivalents cross-referenced to the same numbers. MedService Repair stocks both and answers troubleshooting calls over the phone for free.
Every stage on the DSD Edge moves fluid or air through the same plumbing; almost every part that typically wears on this automated endoscope sits somewhere in that path — a filter, a valve, a seal, or a pump. Understanding the Medivators DSD Edge as one connected system is what tells you which part to reach for when the endoscope reprocessor throws a fault. If you are sourcing a second unit or a backup, MedService also carries refurbished DSD Edge machines.

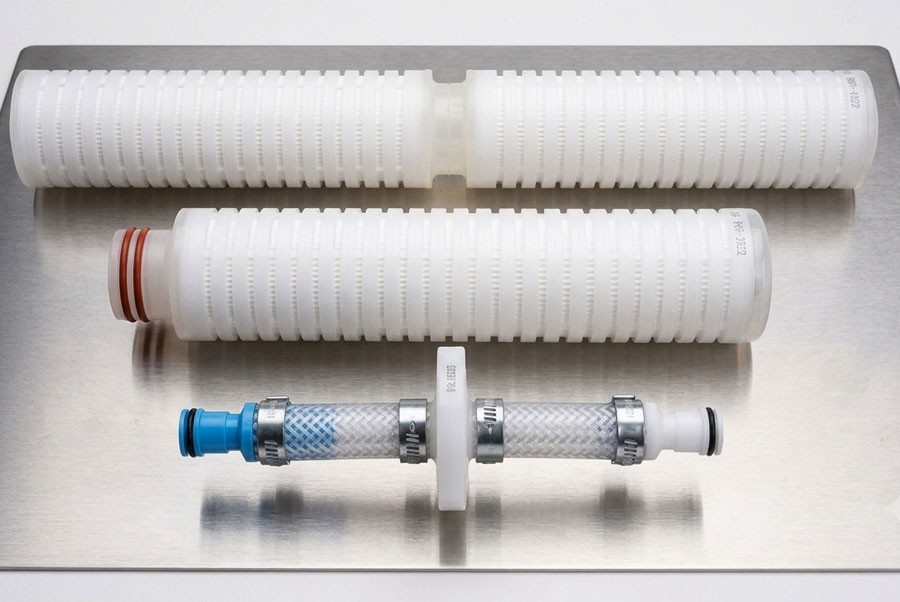

These are the parts that are incorrectly ordered most often, so it is worth reviewing. The DSD Edge runs staged filtration. A 1-micron prefilter (OEM part MF01-0014) catches coarse particulate first. After it, a sub-micron bacteria-retentive final water filter — commonly a 0.2 micron membrane (OEM part MF01-0013) or a 0.1 micron absolute filter — is the last barrier before disinfectant and rinse water reach the scope. Separate from both is the Air Filter Assembly (OEM part MF01-0028, RPI MTA001), a roughly 0.2-micron, 50 mm media disc on the air and drying line. The air filter is not interchangeable with the water filters. Confusing the two is the single most common ordering mistake on this machine.
Watch for the early warning signs before a fault stops the cycle. A clogged or expired water filter usually shows up first as longer cycle times and then as low or no fluid flow and chamber fill faults—symptoms facilities often misread as a pump or valve failure. The bacteria-retentive filter also carries a validated retention claim, so dropping in a coarser or unrated filter there quietly defeats the high-level disinfection the DSD Edge is built to deliver.
Calendar intervals are a starting point, not the rule. Filter life is driven by your incoming water quality and your daily cycle volume, so a high-throughput site on hard water replaces prefilters far more often than a once-a-year assumption suggests. Always confirm against the unit's IFU. The practical tell is the machine itself: when cycles start creeping longer or flow drops, the filter is usually spent even if the calendar disagrees. Bundling filters into our 1-Year Filter Package keeps the right ones on hand for scheduled maintenance.
Valves are where catalogs get confusing — dozens of similar SKUs, no guidance on what actually fails. Here is the short version. The DSD Edge uses a check valve on the alcohol and detergent lines (OEM part MV01-0040) plus a separate check valve (OEM part 78401-260). It also uses a solenoid valve whose coil (MTC032, or DSD coil MV01-0032) is a frequent wear point. When the valve body is still sound, and only the soft parts have gone, you might consider a rebuild rather than replace — a valve rebuild costs a fraction of a new assembly. That single decision, rebuild versus replace, is the one that saves the most money on this machine. But make sure to follow all of the OEM guidelines for safety.
Soft parts degrade from constant chemical exposure, and they fail quietly. The Alcohol and Detergent Valve seal (MTS022, OEM part MV01-0035) and the Air Valve Diaphragm Kit (MTK019) are the usual suspects. O-rings are sold both singly (OEM part 43100-224, MO01-0004) and as an O-ring kit (MTK046, OEM part 43100-302). Do not underestimate a single hardened ring — a torn or stiff ring is a leading cause of slow leaks and creeping pressure faults that look like a much bigger problem until you find the real culprit.
Two service kits cover most valve work. The Drain/Return Valve Rebuild Kit (OEM part 78400-658, RPI MTK013) and the Overflow Valve Rebuild Kit (OEM part 78400-659, RPI MTK014) each bundle the seals, springs, and O-rings for that one valve. You get everything needed to restore the assembly in a single box instead of chasing individual soft parts. A drain return fault that throws intermittent fill or drain errors is the classic case for the first kit.
Here are the remaining high-turnover items. The Disinfectant Pump (MTP025, OEM part 78400-689) meters chemistry; the Float Ball (OEM part 47049-658) reads basin level; and the Basin Sensor Cover (MTC029, OEM part MC13-0015) protects the level sensor. A worn float or fouled sensor cover is a common driver of low-chamber alarms. On the electrical side, the STERIS parts list covers the DSD Edge temperature probe, control panel board, wiring harness, and barcode scanner — items a biomed will want a source for even if they fail rarely. A pressure switch that drifts out of spec also belongs on the watch list, since pressure faults often trace back to it rather than the pump.
Two pump parts drive dosing accuracy. The Disinfectant Pump (OEM part 78400-689) and the Peristaltic Pump Tubing Set (MT010-0500) work together to deliver the right chemistry at the right concentration. The tubing is the inexpensive, frequent replacement — it flexes thousands of times per shift, so treat the tubing as a scheduled wear item rather than waiting for it to split.
Here is the buying decision. Every part above exists as genuine OEM and as an OEM-compatible equivalent built to the original dimensional and performance specs. Compatible parts are cross-referenced to the OEM number — RPI MTK033 matches OEM part 78401-176 for the annual PM kit, for example — and they run materially below OEM pricing. The Annual PM Kit (RPI MTK033 / OEM part 78401-176) bundles the high-turnover wear parts into one scheduled service: filters, valve seals, O-rings, and diaphragms, so you are not sourcing parts one at a time mid-failure.
Three checks confirm a match. First, the model — DSD Edge, not DSD-201 or Advantage Plus; they share a family, but not every part. Second, the exact part number. Third, the connection or thread type. Verify against the unit's OEM service manual or the part's own label rather than the model name alone, because field upgrades and sub-variants can change which OEM part is correct. Solid preventative maintenance is achieved with the right kit, on schedule, confirmed against the OEM manual.
A no-fluid-flow alarm points first at the filters, the strainer, or a stuck check valve. A low-chamber alarm usually traces to the float ball, the basin sensor cover, or the overflow valve. Leaks and pressure faults almost always come back to a worn O-ring, a valve seal, or the air valve diaphragm. Before you call for service, check the simple things in order: filter condition, visible leaks, and whether a recent part swap matches the manual. That five-minute check resolves a surprising share of calls and tells you exactly which part to order if it does not. You're always welcome to call us; we'd be happy to help.
Identify the part by its label or the service manual, not the model name — that is the single best way to avoid a wrong order. Keep the fast-moving items on the shelf: the prefilter and water filters, the air filter, common o-rings, check valves, the rebuild kits, valve seals, the float ball, and the basin sensor cover. When you are unsure which Medivators DSD Edge part fits your exact unit, call MedService Repair and talk it through. The phone troubleshooting is free, the compatible parts ship for less than OEM, and a five-minute call usually beats a service visit.
Both can cause low or no fluid flow, but a clogged filter shows up gradually—cycles run longer for days before a hard fault, and a fresh filter restores normal timing. A pump or valve issue tends to appear more suddenly. Swapping the suspect filter first is the cheapest, fastest diagnostic.
Rebuild when the valve body is sound and only the soft parts—seals, springs, diaphragm, o-rings — are worn, which is the usual case. A valve rebuild kit restores the assembly for a fraction of replacement cost. Replace the whole valve only when the body itself is cracked, corroded, or damaged.
The Annual PM Kit (RPI MTK033 / OEM part 78401-176) bundles the high-turnover wear items — filters, valve seals, o-rings, and diaphragms — into one scheduled maintenance service so you replace them on a plan instead of one at a time during a breakdown.
Not reliably. The machines share a product family but not every part, and using a near-match from the wrong model is a common, avoidable error. Always confirm the part is specified for the DSD Edge before you order.
